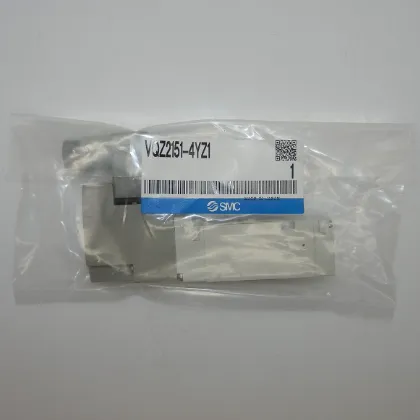

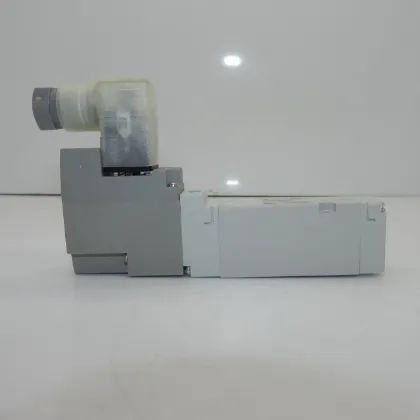

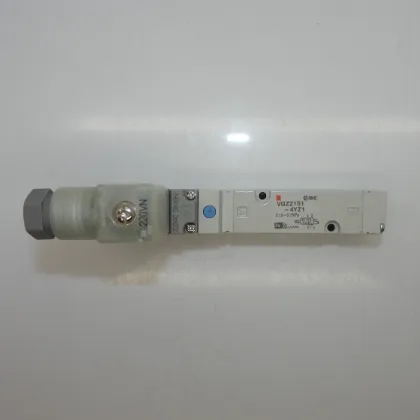

SMC Corporation VQZ Series Base Mount Solenoid Valve VQZ2151-4YZ1

• Fluid: air, inert gas
• Operating pressure range: 0.1 - 0.7MPa
• Effective area mm 2 (Cv):
• metal seal 2.0 (0.11) - 12.6 (0.7);
• rubber seal 3.1 (0.17) - 16.2 (0.9)
• Coil rated voltage: 12, 24VDC;
• 100, 110, 200, 220VAC
• Response time (ms) standard 1W, high pressure 1.5W:
• metal seal 25 or less; rubber seal 30 or less
• Ambient and fluid temperature: -10 to 50 C
