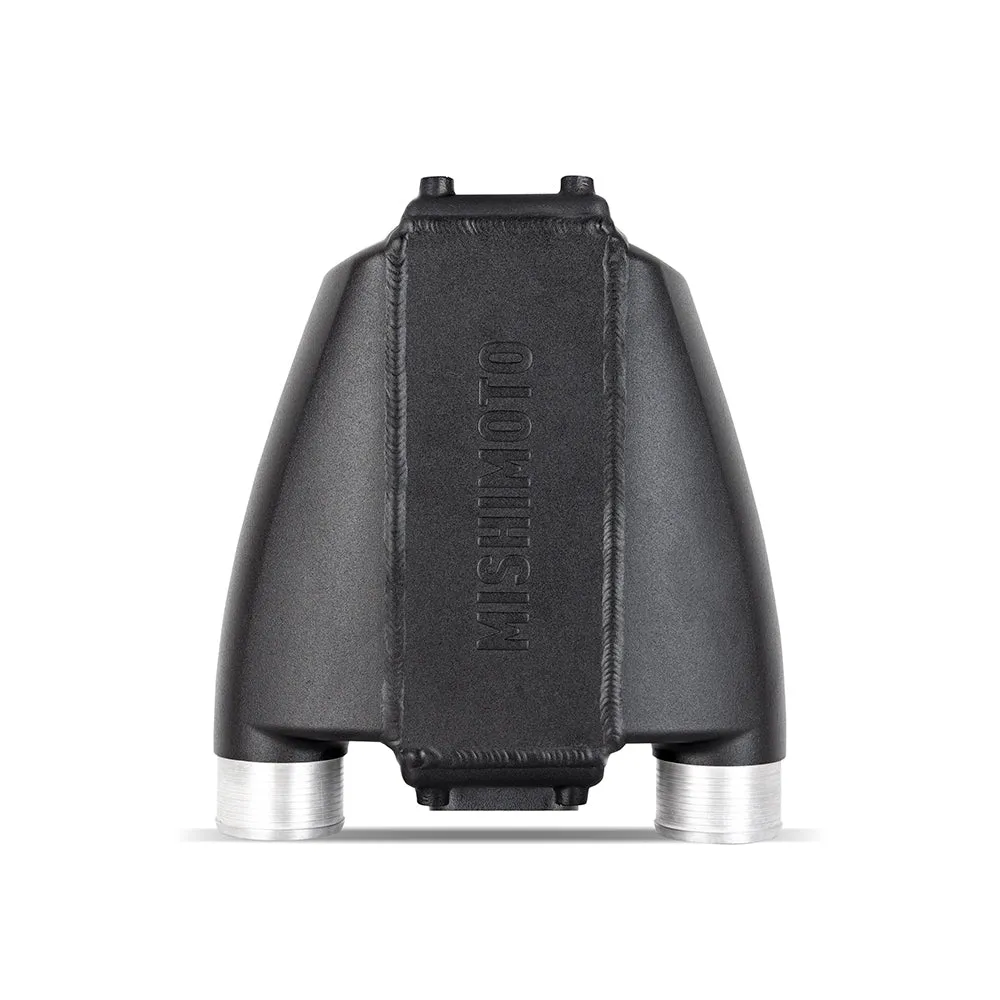

Name: Mishimoto Air-to-Water Intercooler, Dual-Pass Coolant, 500HP-Same Side Inlet/Outlet - MMINT-A2W-DP-1
SKU: 126116

PRODUCT FEATURES

Highly efficient air-to-water design delivers effective cooling in a compact package
Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
CNC-machined ribbed airflow inlet/outlet produces secure coupler connections

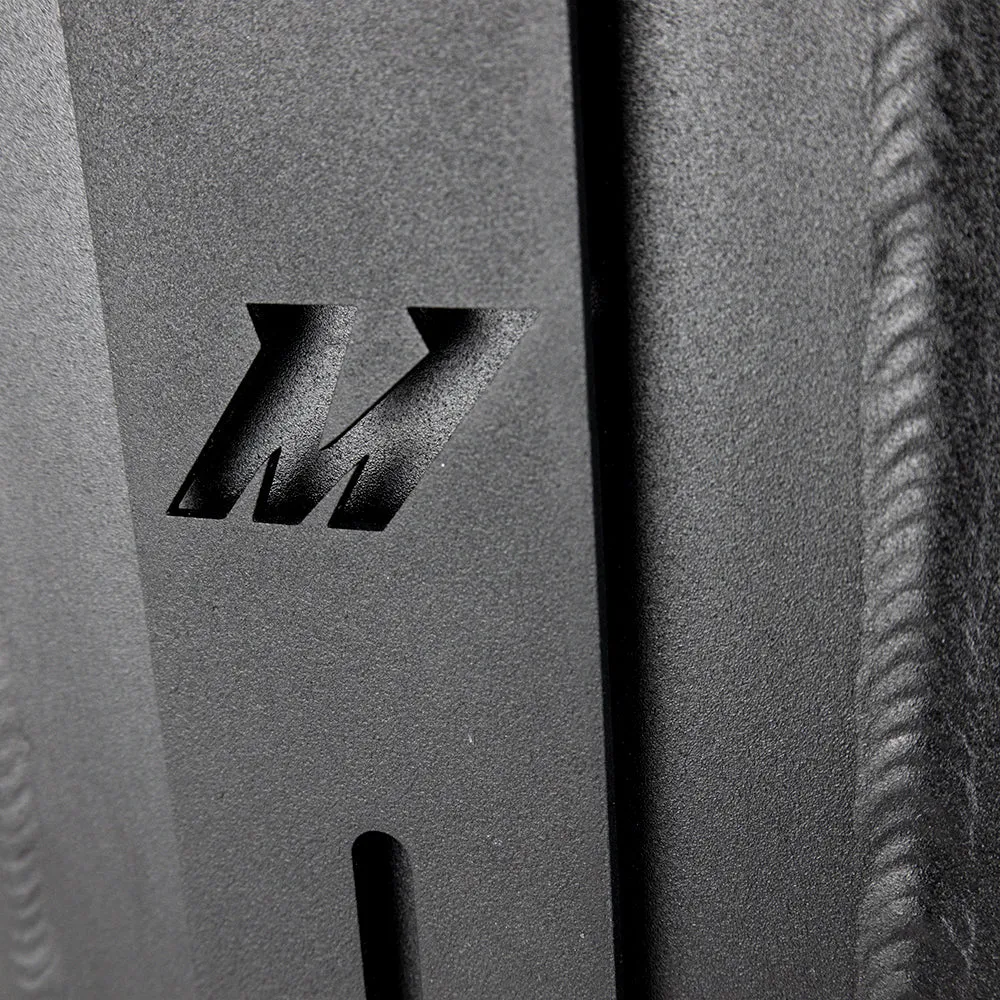

Sleek, subtle, and durable micro-wrinkle black powder coat finish

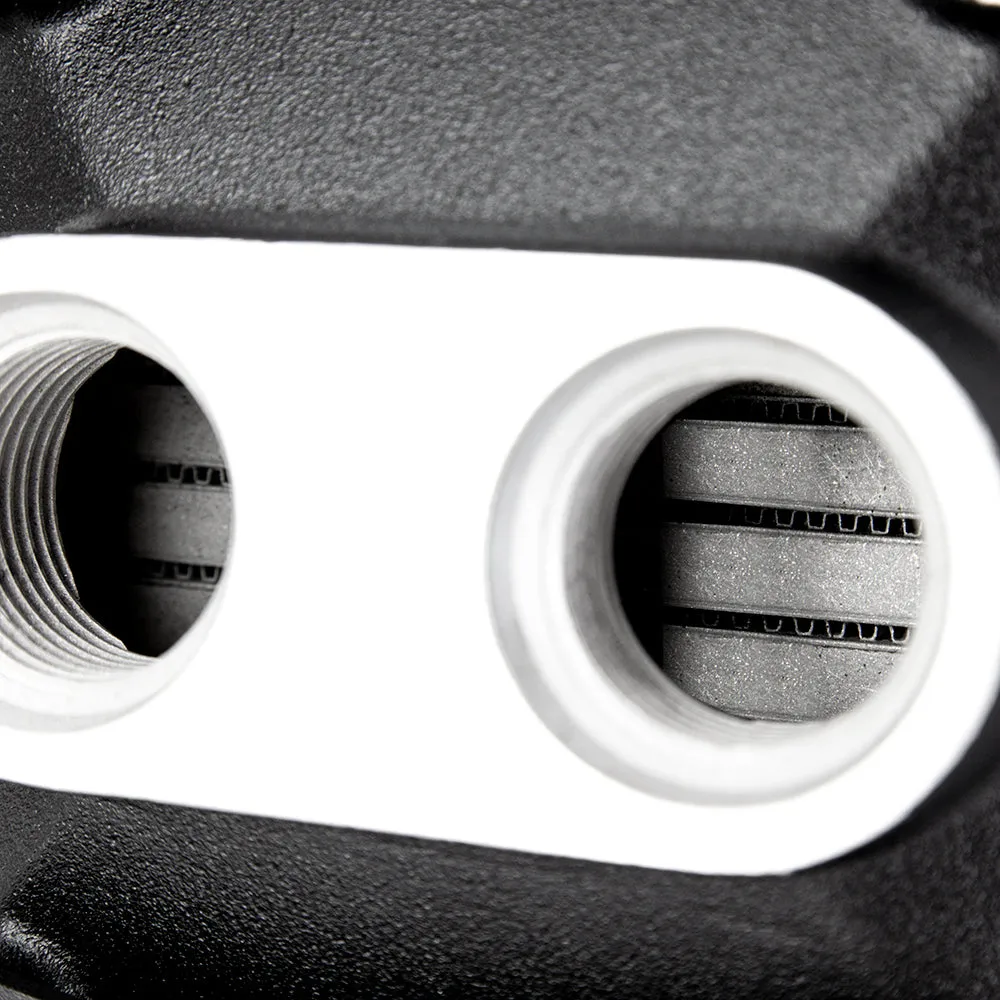

-12ORB coolant ports provide leak-free line connections

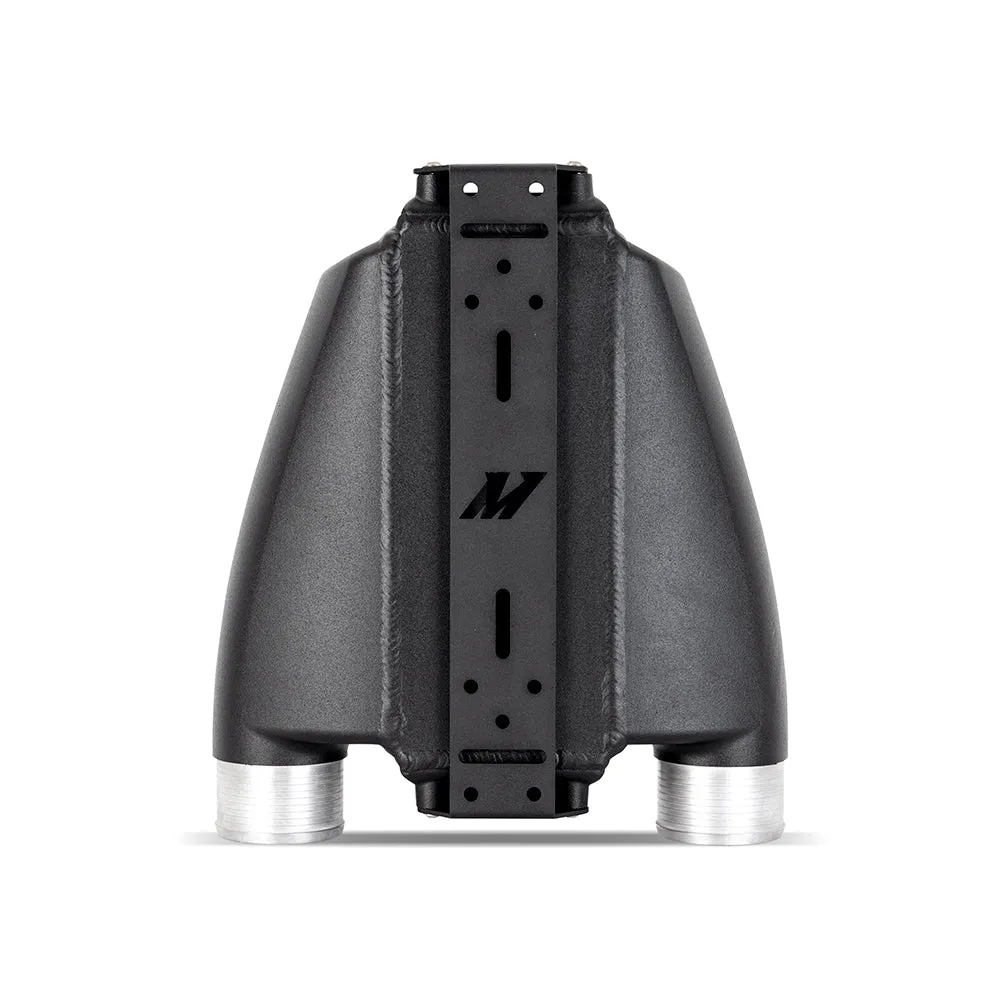

Includes robust 1/8” thick steel mounting bracket and hardware
Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
Multiple core sizes to choose from to fit the needs of your project
Mishimoto Lifetime Warranty

DESCRIPTION

Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers.

Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower.

When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping.

Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -12ORB coolant ports into the core and providing a sturdy 1/8” thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -12ORB Aluminum Fitting selection.

Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat. As with all our products, these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty.
